Recently Roy and I set out to build set out to build a better headphone amplifier for our higher end Sennheiser headphones. A headphone amp simply boosts the power to the headphones a bit, this results in better sound on the bigger headphones. The design is built around a know design over at Diy Audio Projects. It is a Class A amplifier with a 12AU7 tube. We ended up puting a spin on the project and added a PCM2704 USB DAC (sound card). Sweet glowing tube action pictures are below.

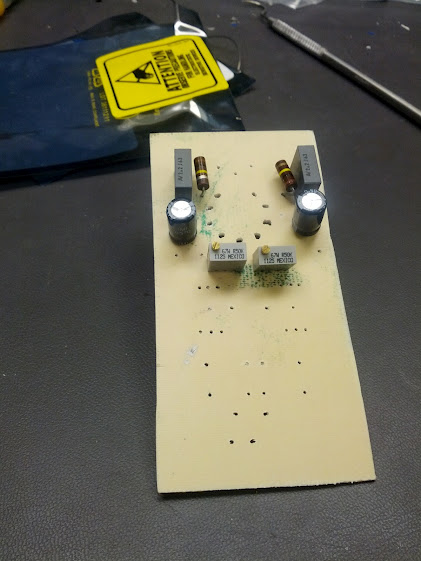

Populating the board

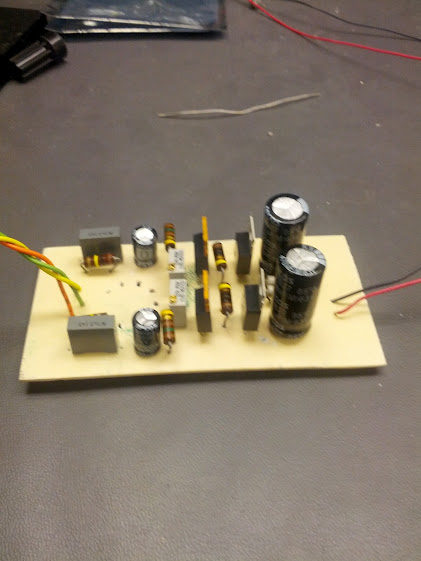

Fully Populated

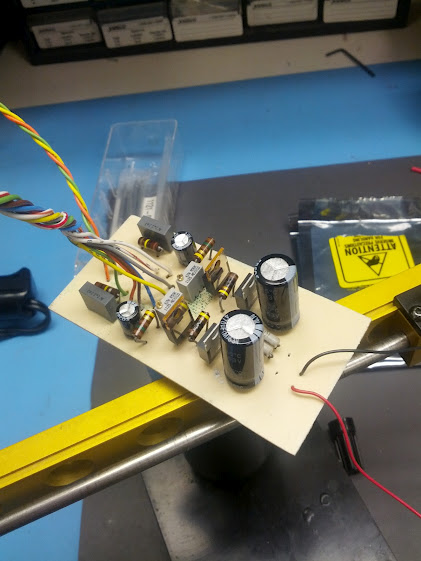

All soldered up.

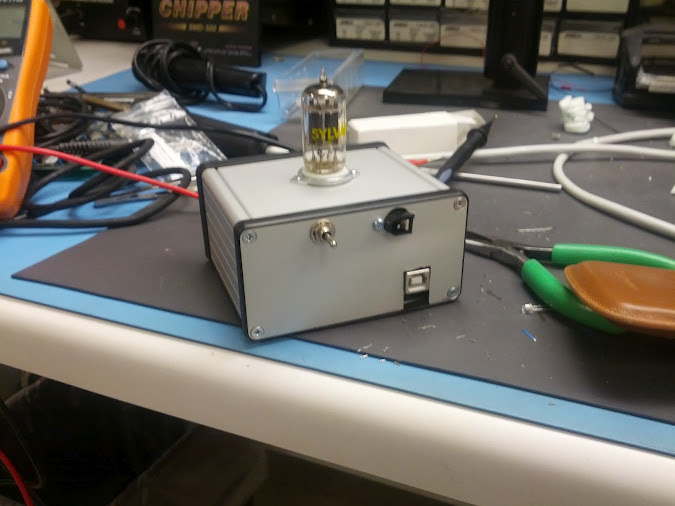

Back of Amp

Front of Amp

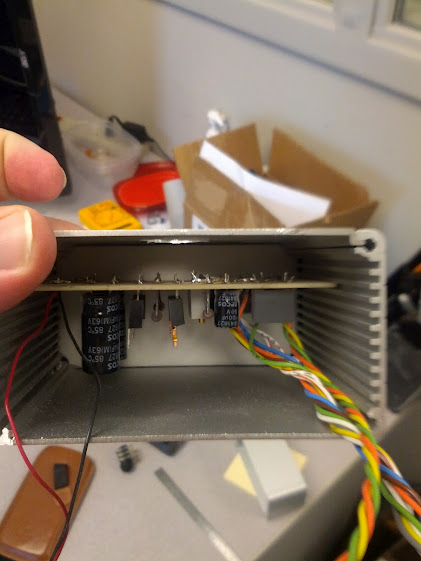

Amplifier board hung.

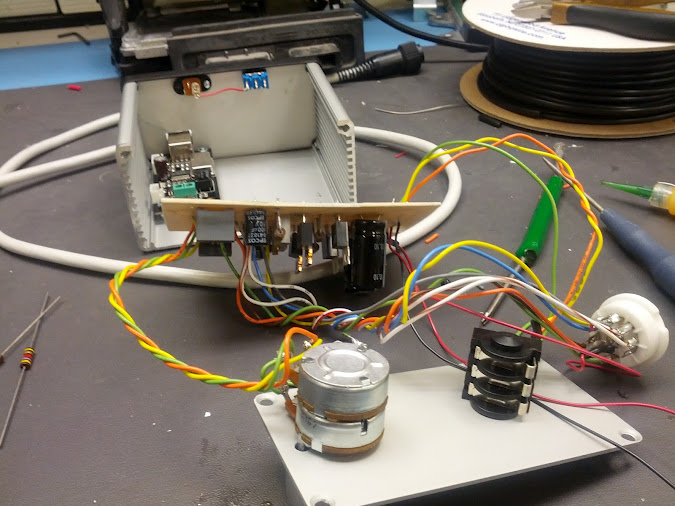

Blown apart

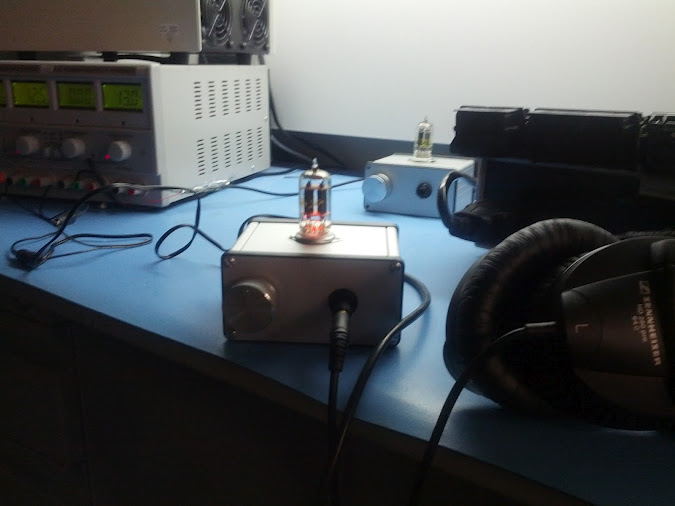

Amp Running
